How to connect a Veeder-Root TLS-350

On the console, use the keypad to retrieve communication settings

1. Press the Mode button (A) on the keypad until the screen says SETUP MODE.
2. Press the Function button (B) on the keypad until the screen says COMMUNICATIONS SETUP.
3. Press the STEP button (C) on the keypad until the screen says PORT SETTINGS.
4. Press the PRINT button (D) on the keypad to retrieve the communications settings.

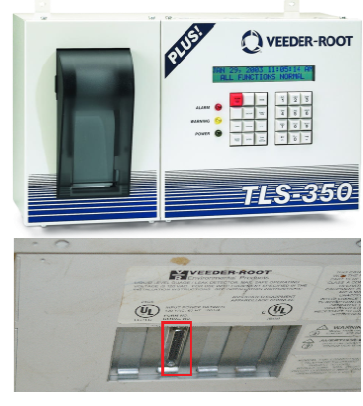

Connecting the PDS hardware to the TLS-350

1. Connect the appropriate connector/adapter to the ATG's serial port

(Connect the gray 3-pin DB25 adapter to an available serial port on the bottom of the ATG)

2. Connect the black DB9 female adapter into the serial port on the PDS hardware device.

3. Connect the included ethernet cable to each adapter.

4. Contact us to confirm communication settings and connectivity.
