How to connect to a Incon TS

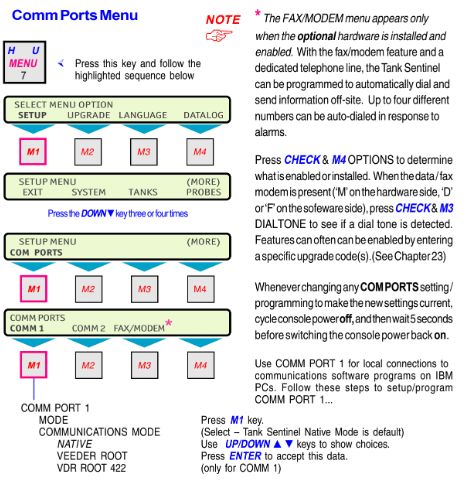

On the console, use menu to retrieve/edit communication settings.

• Mode = Veeder Root (Important)

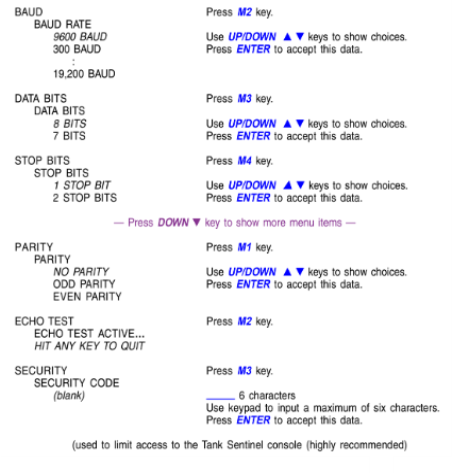

• Baud = 9600
• Data Bit= 8
• Stop Bit = 1
• Parity = None

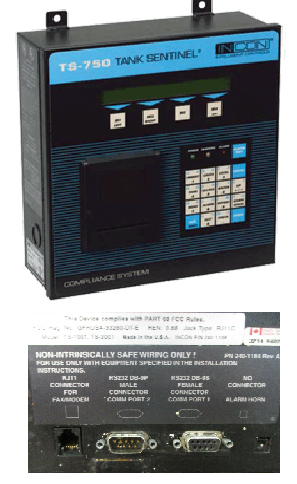

Connecting the PDS hardware to the INCON TS

1. Connect the appropriate connector/adapter to the ATG's serial port

• (Connect the gray 7-pin DB9 male adapter to Comm port 1.)

2. Connect the black DB9 female adapter into the serial port on the PDS hardware device.

3. Connect the included ethernet cable to each adapter.

4. Contact us to confirm communication settings and connectivity.
