How to connect a Omntec Proteus

How to retrieve/edit communication settings

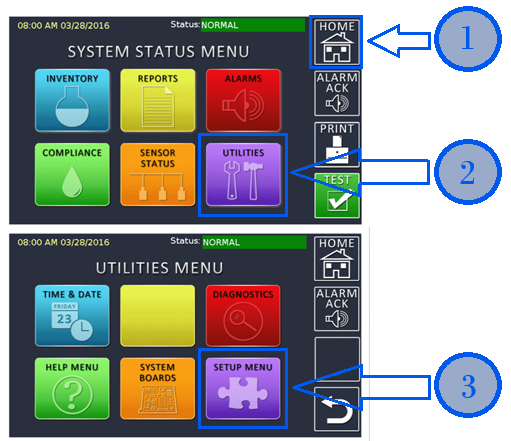

  1. Select HOME
  2. Select UTILITIES
  3. Select SETUP MENU

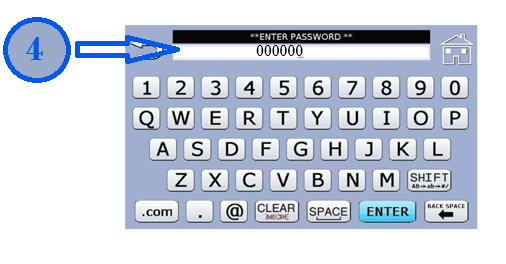

  1. Enter the password to get into SETUP MENU (Default is 000000,but this could have been changed)

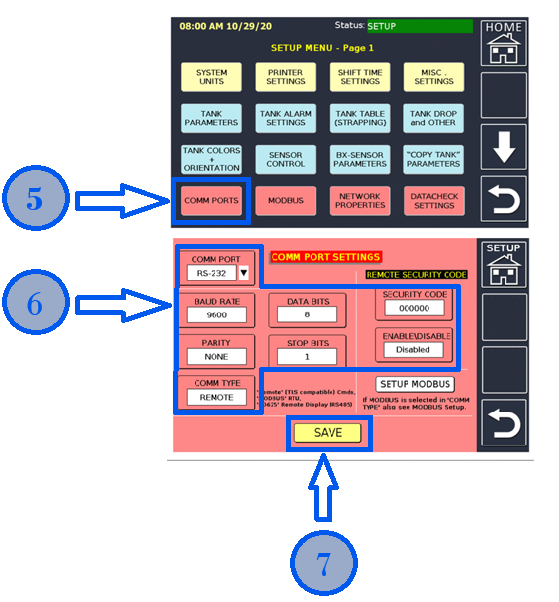

  1. Select COMM PORTS
  2. Set comm port settings
  • Comm port: RS-232
  • Baud rate: 9600
  • Data bits: 8
  • Parity: NONE
  • Stop bits: 1
  • Security code: Disabled


  1. Select SAVE after settings are correct

Connecting the PDS hardware to the Omntec Proteus


1. Connect the appropriate connector/adapter to the ATG's serial port

  • (Connect the gray 7-pinDB9 male adapter to serial port)

2. Connect the black DB9 female adapter into the serial port on the PDS hardware device.

3. Connect the included ethernet cable to each adapter.

4. Contact us to confirm communication settings and connectivity.

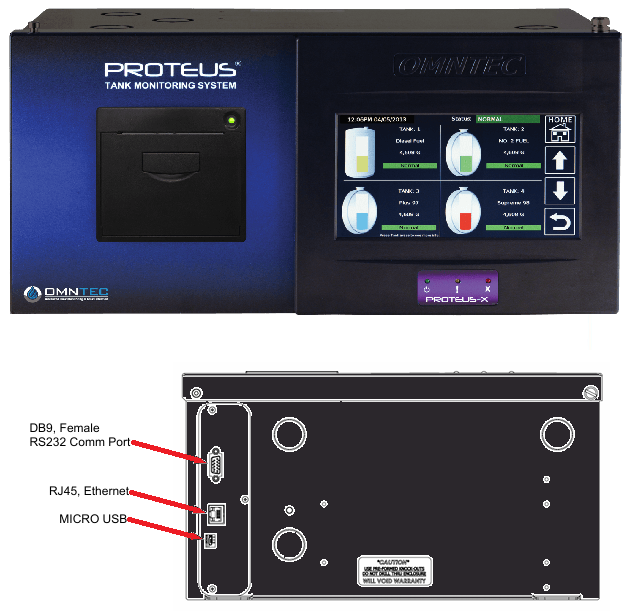

Proteus X

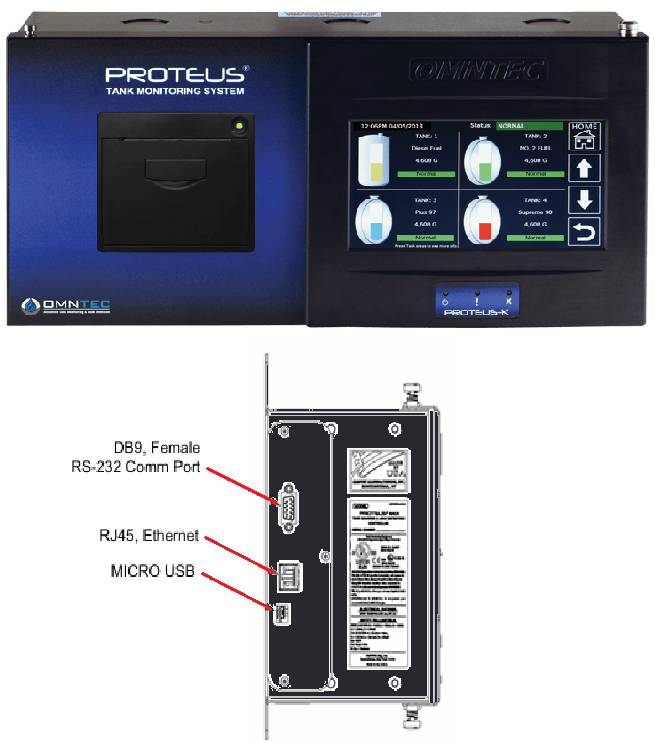

Proteus K
